Our express freighter
ATR 72 Freighter
Seventy-five cubic metres, overnight.
- Payload
- 8,200 kg
- Volume
- 75.5 m³
- Cruise
- 278 kt
- Range
- ~800 nm
- Cargo door
- up to 2.94 m
ATR 72-201 / 72-202, converted freighter
ATR 72 Freighter
The ATR 72 started as a 70-seat regional airliner. With the seats out, the floor strengthened and a cargo door cut in, it became one of the most common regional freighters in the world. It's wide for its size, quick to load, and cheap enough to run that express networks fly it every night.
We fly two, on night express routes across north-west Europe. HB-AFJ is a bulk freighter with the standard forward cargo door. HB-AFN has a large cargo door almost three metres wide, which takes pallets and containers.

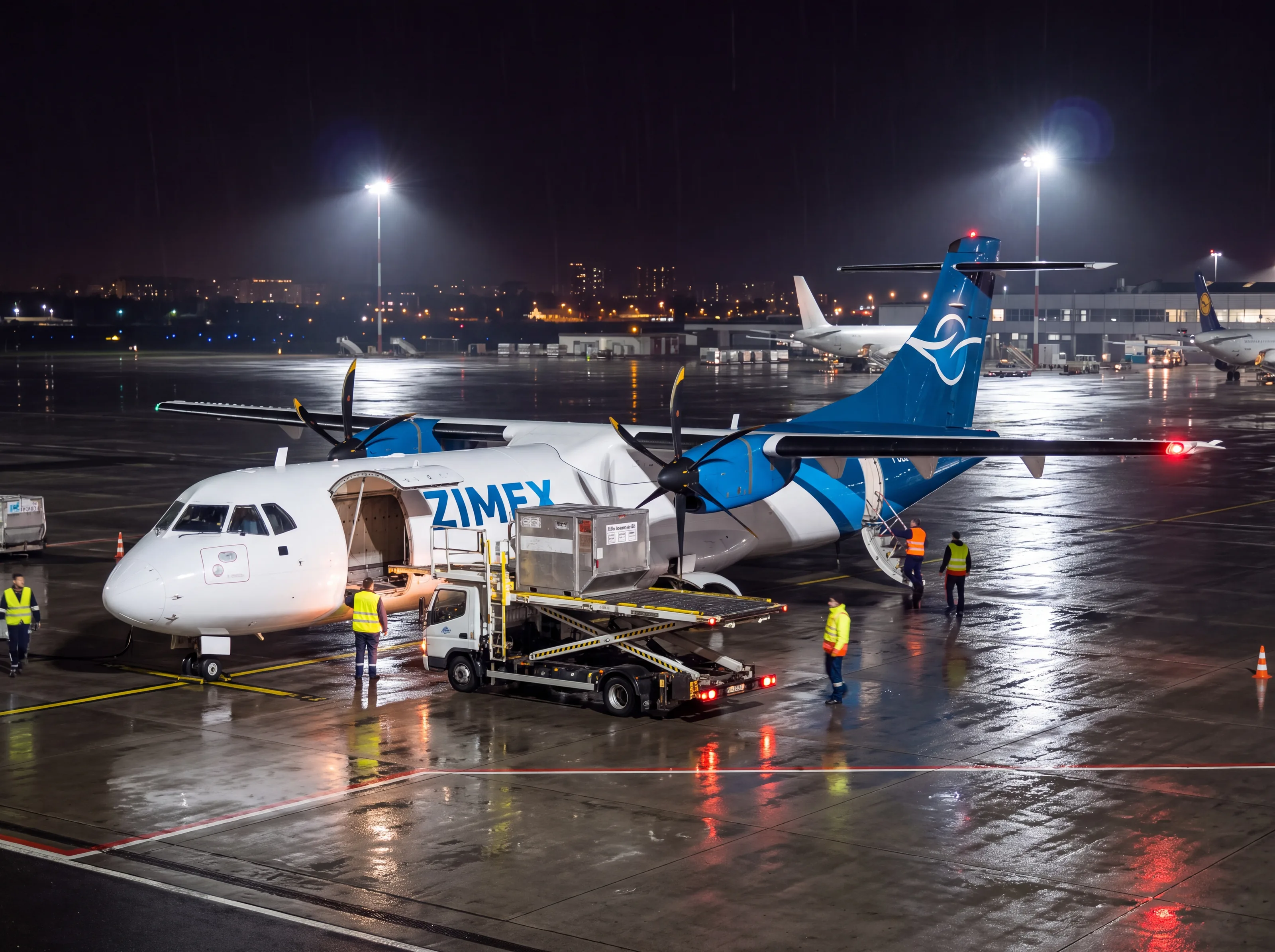

The large cargo door
On HB-AFN: 2.94 × 1.80 m, with the sill at truck-bed height. Space for up to five 88 × 108 in pallets or seven LD3 containers.
75.5 m³
A long, wide main deck, rated at 400 kg/m².
Fast enough
278 kt cruise. Maastricht to Birmingham takes under an hour and a half.
Ready at short notice
Quote in 15 minutes. Airborne within 1.5 hours of confirmation.
ATR 72 Freighter
On board

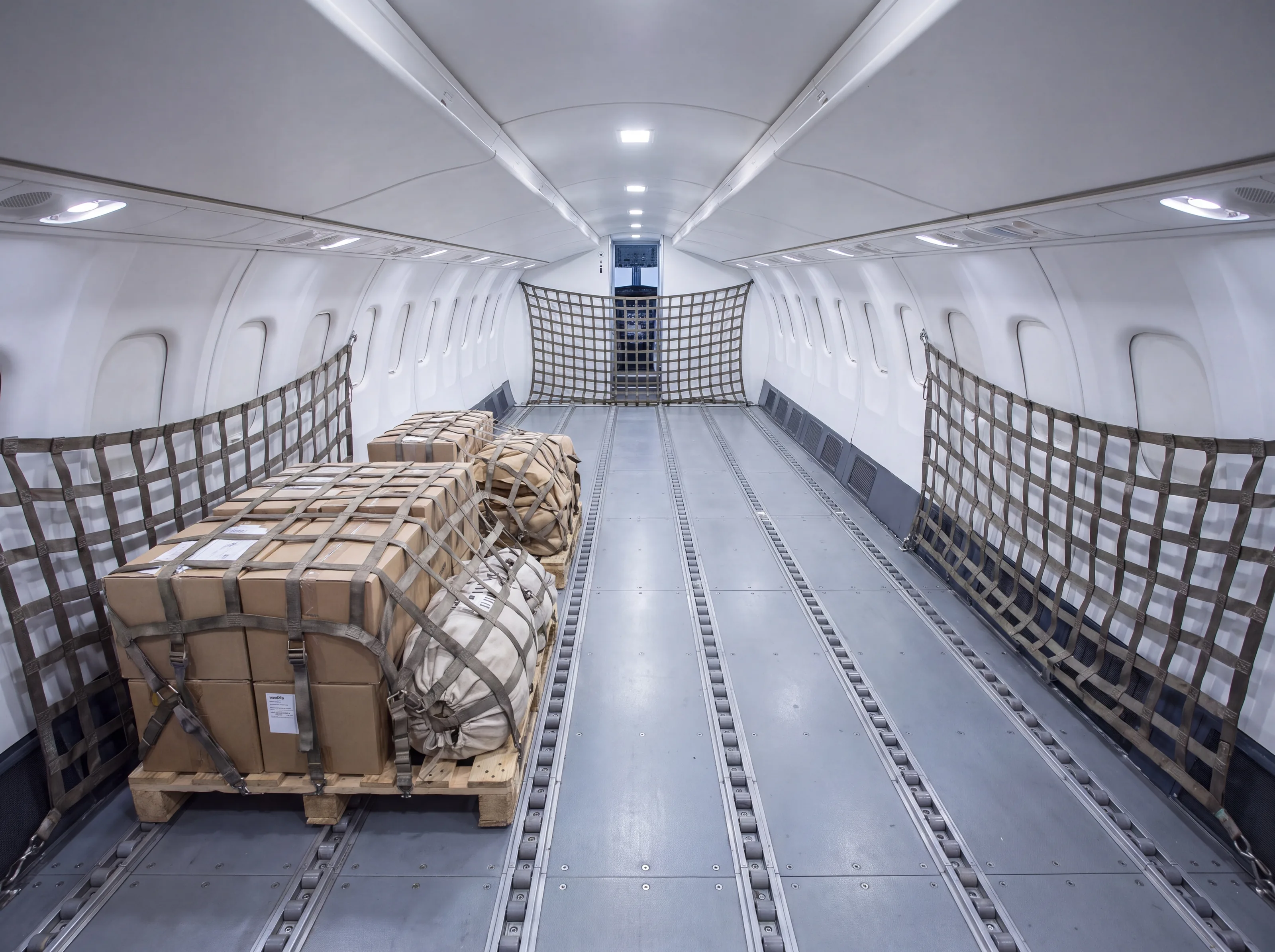

The main deck
Seats out, reinforced floor in, cargo nets and a barrier net behind the flight deck. Loaded by hand or on rollers.

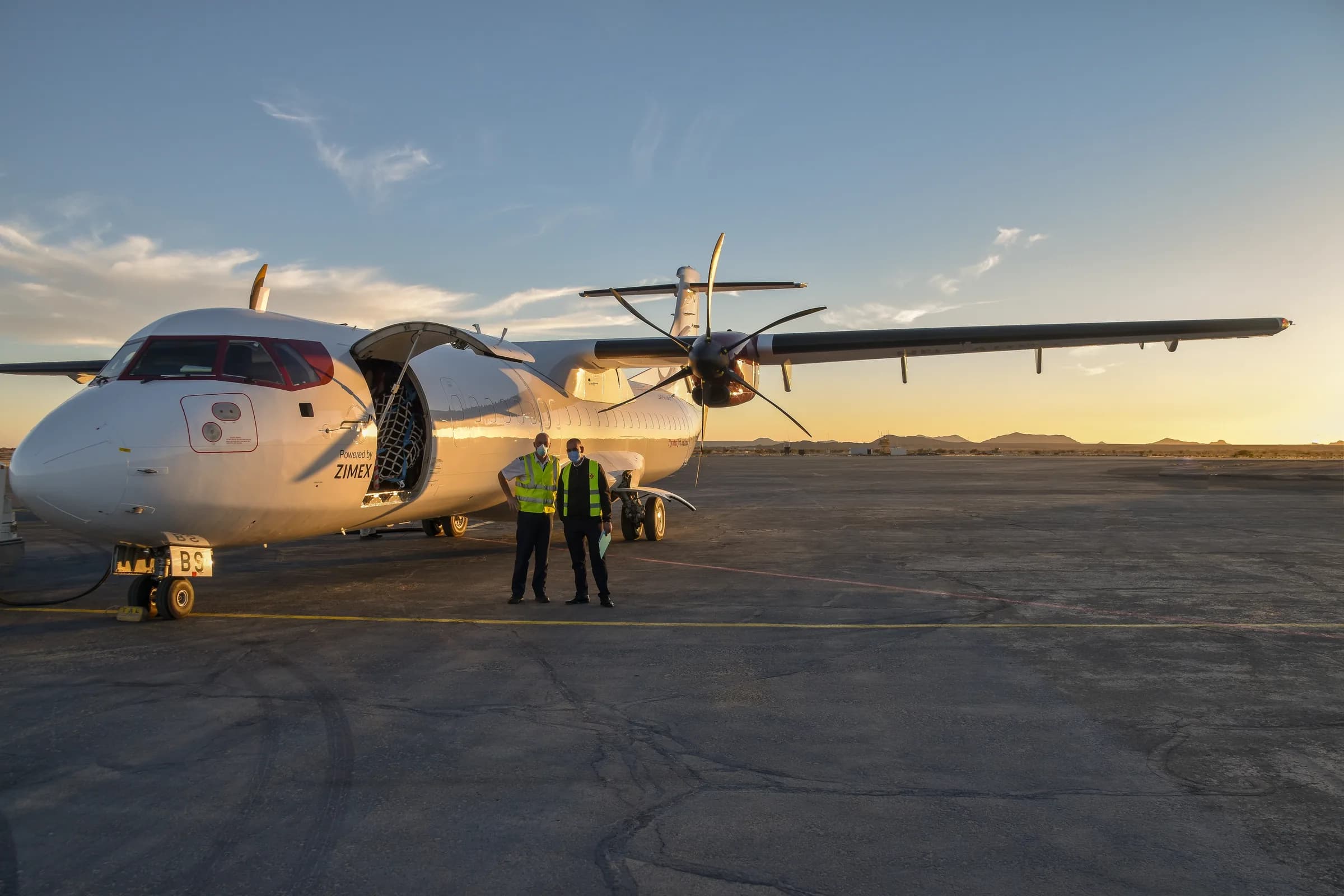

Two ways in
The standard forward door (1.27 × 1.53 m) on HB-AFJ, or the large cargo door (2.94 × 1.80 m) on HB-AFN. Tell us what you're shipping and we'll send the right one.
What goes in
Mail and parcels, automotive parts, dangerous goods, live animals, instruments and art, humanitarian cargo.
- Payload
- 8,200kg
- Main deck
- 75.5m³
- Max cruise · 515 km/h
- 278kt
- Typical range · 1,480 km
- ~800nm
Range
From Maastricht: about 800 nautical miles.
That's ATR's figure for an all-bulk load at typical density. It covers the British Isles, Scandinavia and most of central Europe without a stop. With a lighter load the ATR 72 goes further: about 1,030 nm with 7.5 tonnes.

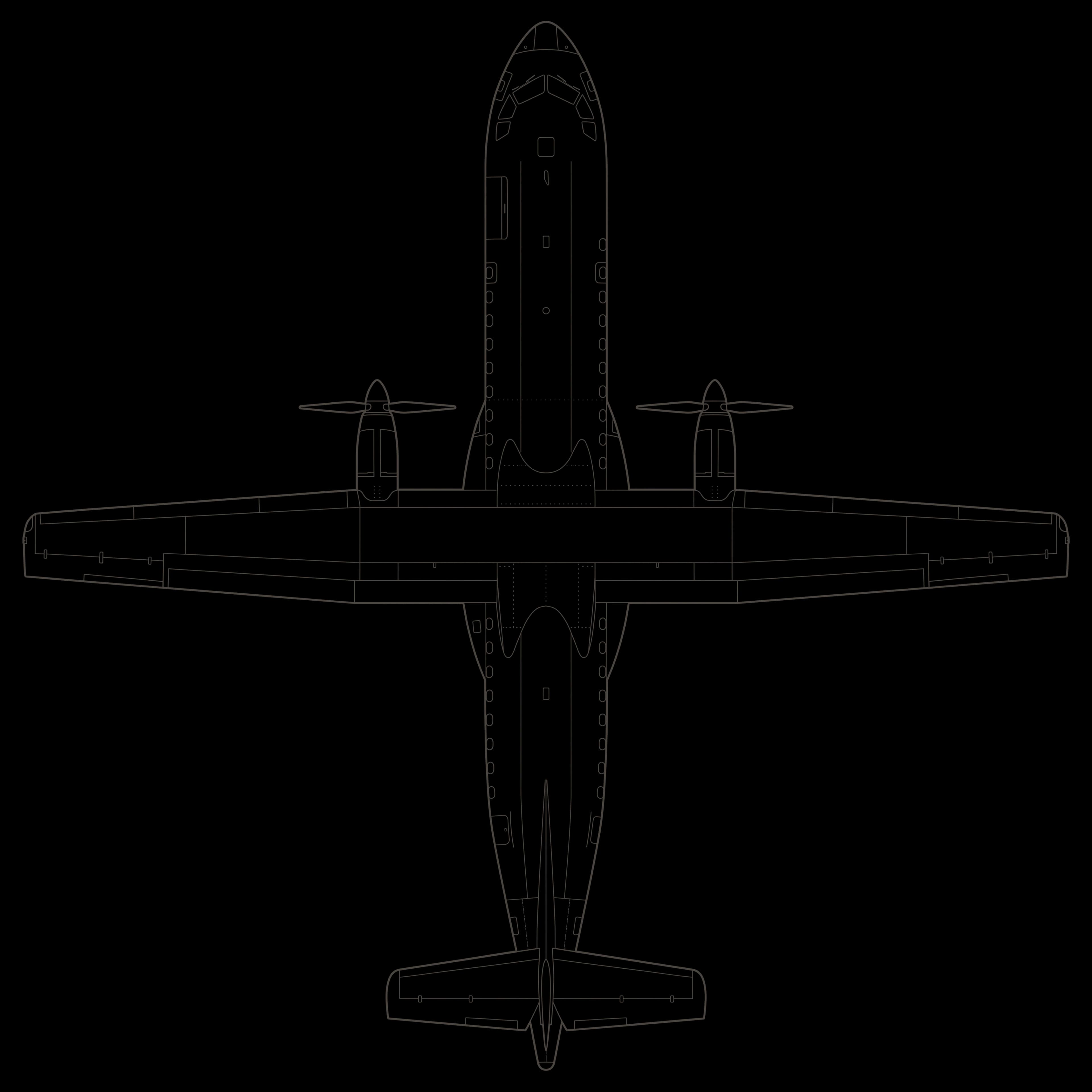

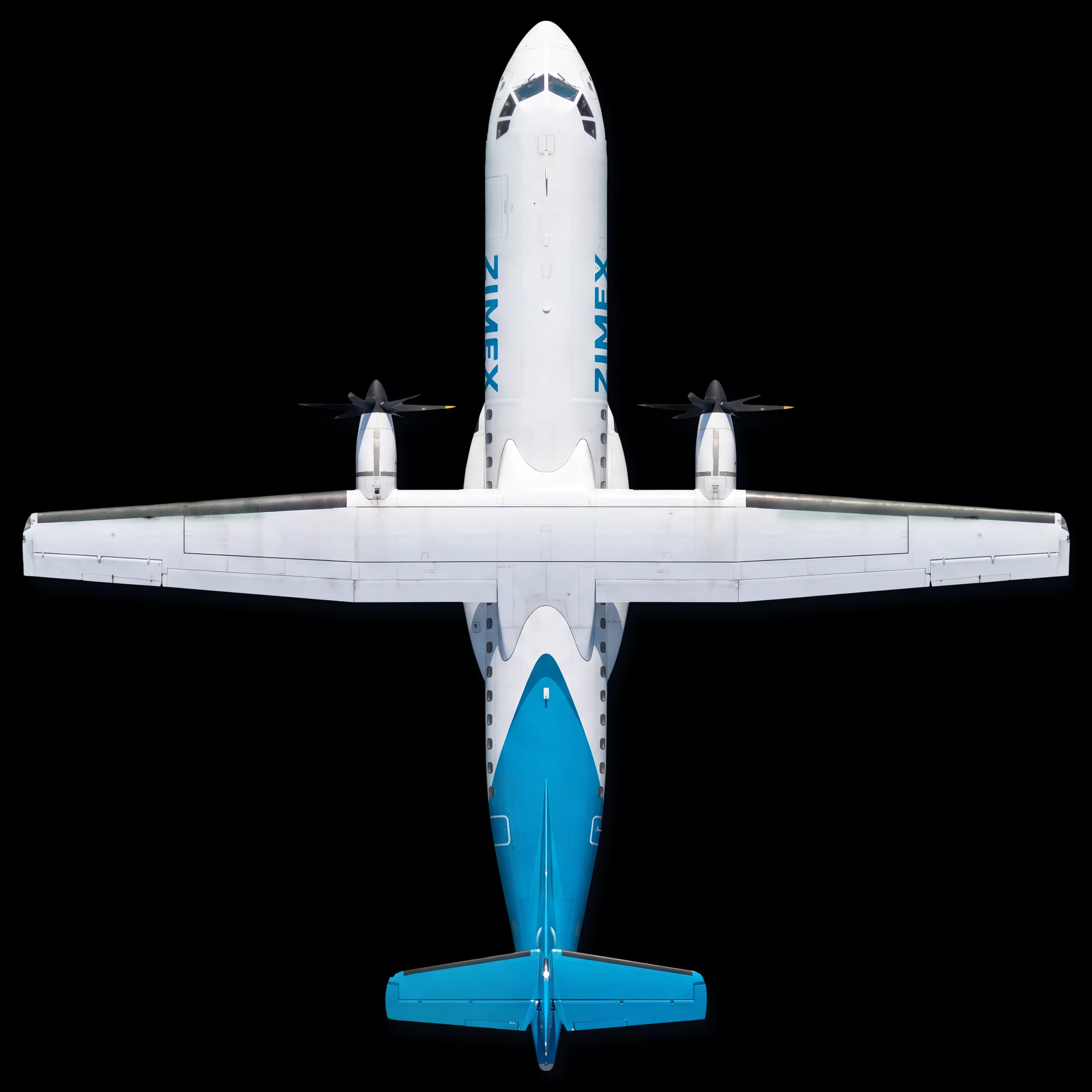

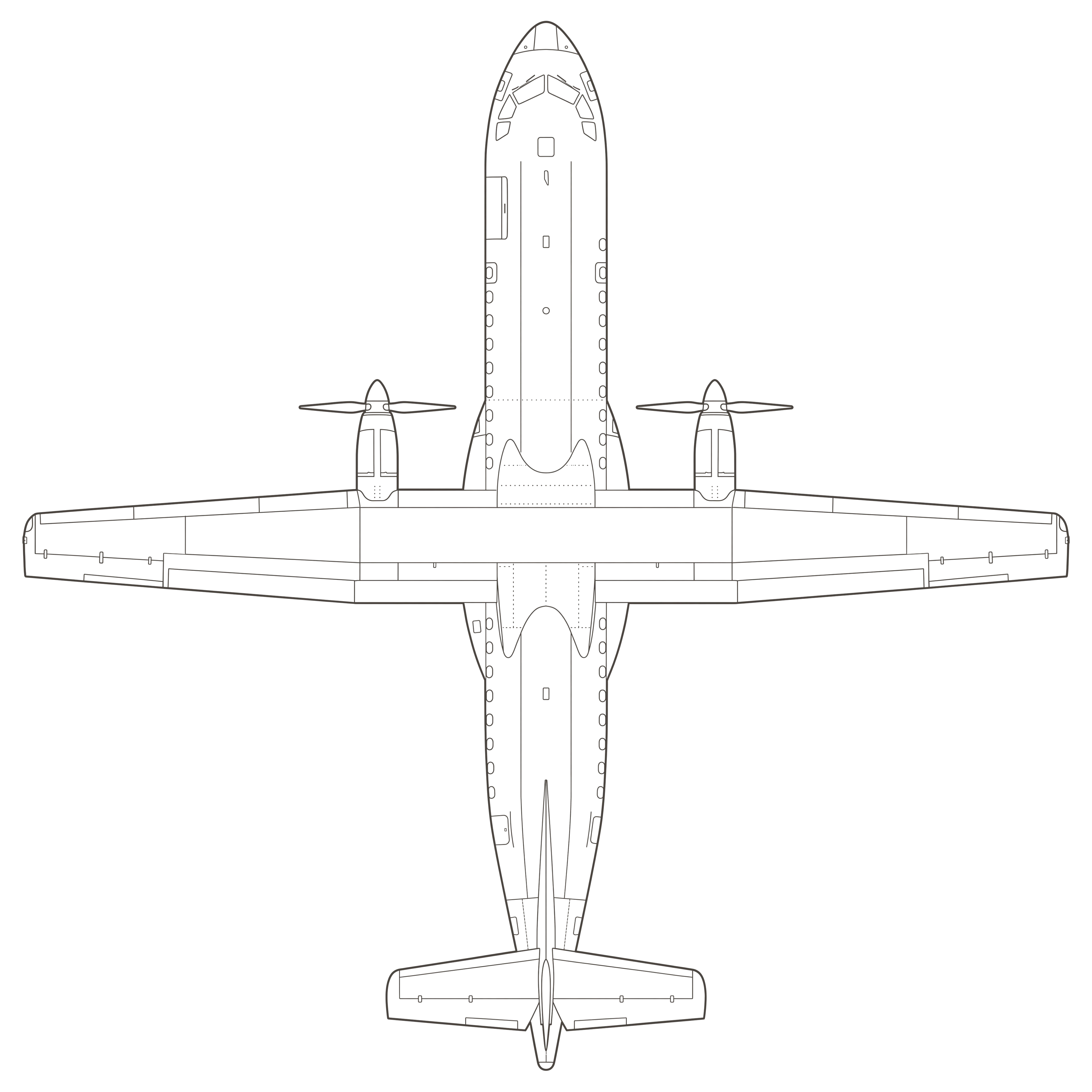

Top view
ATR 72 Freighter
- Wingspan
- 27.05 m
- Length
- 27.17 m
- Height
- 7.65 m
ATR 72-201 / 72-202, converted freighter
Specifications
- Type
- ATR 72-201 / 72-202, converted freighter
- Crew
- 2 pilots
- Configuration
- Bulk (HB-AFJ) · large cargo door (HB-AFN)
Figures are ATR's published data for the ATR 72-200 series and the converted-freighter programme, and the EASA type certificate. Payload and volume depend on each aircraft's conversion.
Registrations
Our aircraft
| Reg | Type | Built | Door |
|---|---|---|---|
| HB-AFJ | ATR 72-202F | 1989 | Standard forward cargo door |
| HB-AFN | ATR 72-201F | 1994 | Large cargo door |
The other aircraft
The backbone of Zimex since 1970

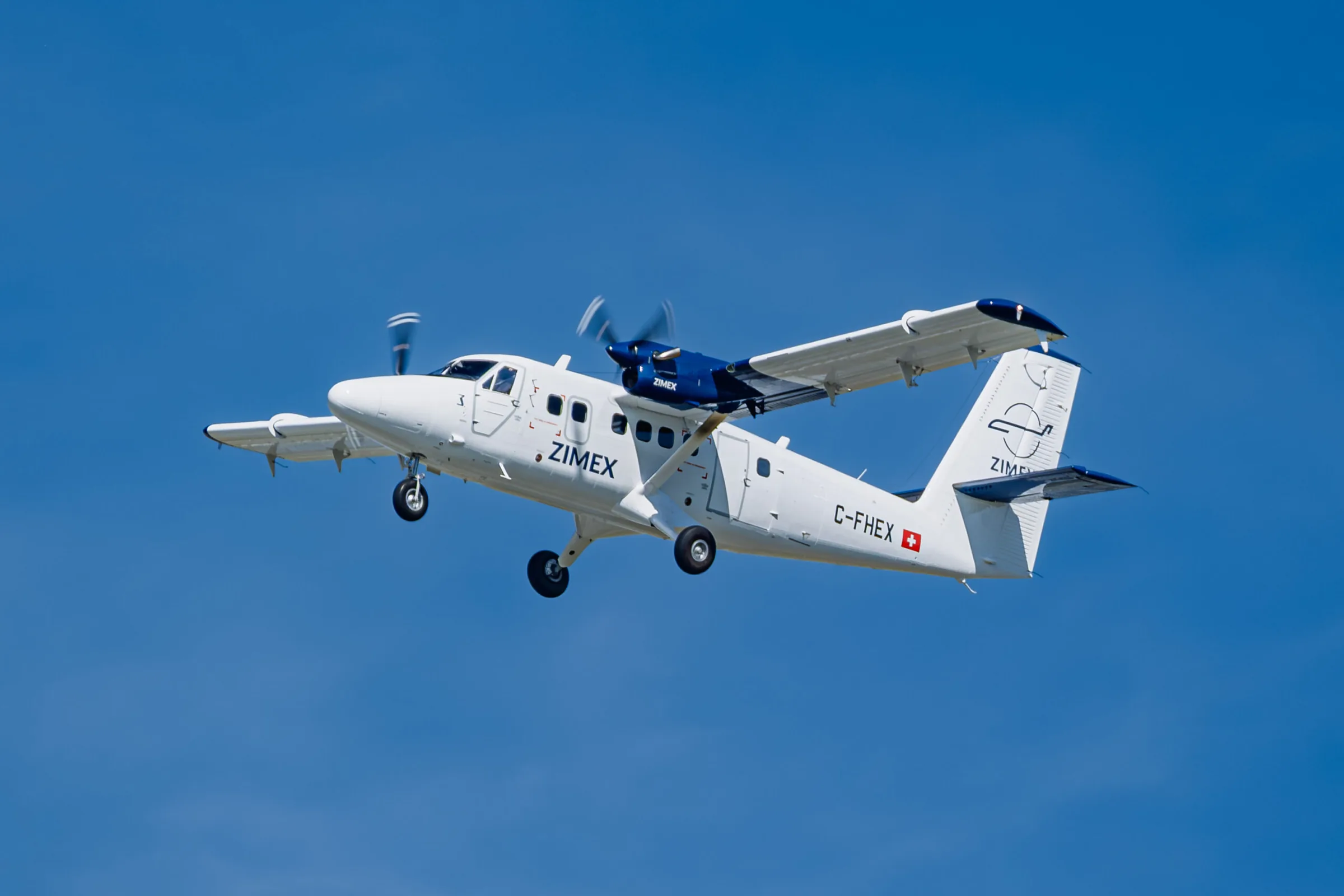

Twin Otter
