The backbone of Zimex since 1970
Twin Otter
Designed in 1965. Still hasn't found a strip it doesn't like.
- Passengers
- 19
- Payload
- ~2,000 kg
- Take-off
- 366 m
- Cruise
- 182 kt
- Lands on
- Wheels, floats, skis

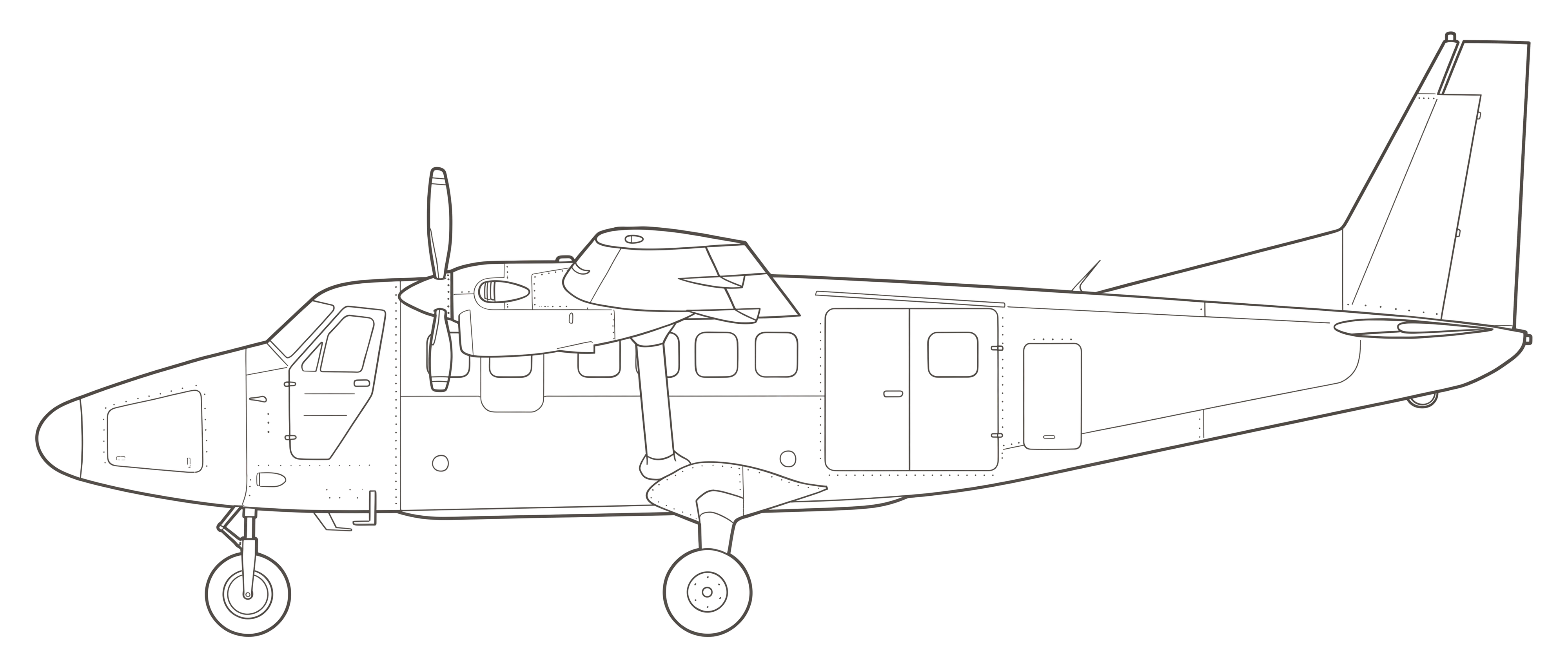

de Havilland Canada DHC-6
Twin Otter
De Havilland Canada designed the Twin Otter in the 1960s for short, unprepared strips in the Canadian north. They built 844 before production stopped in 1988, and then the world kept asking for more. Production restarted in 2010, and Zimex took the first new one.
We fly three generations: the classic DHC-6-300, the DHC-6-400 with a Honeywell glass cockpit, and the new Classic 300-G with Garmin's G1000 NXi. Outside they're the same aircraft, with the same high wing, the same fixed gear and the same habit of stopping in less runway than most aircraft need to taxi.

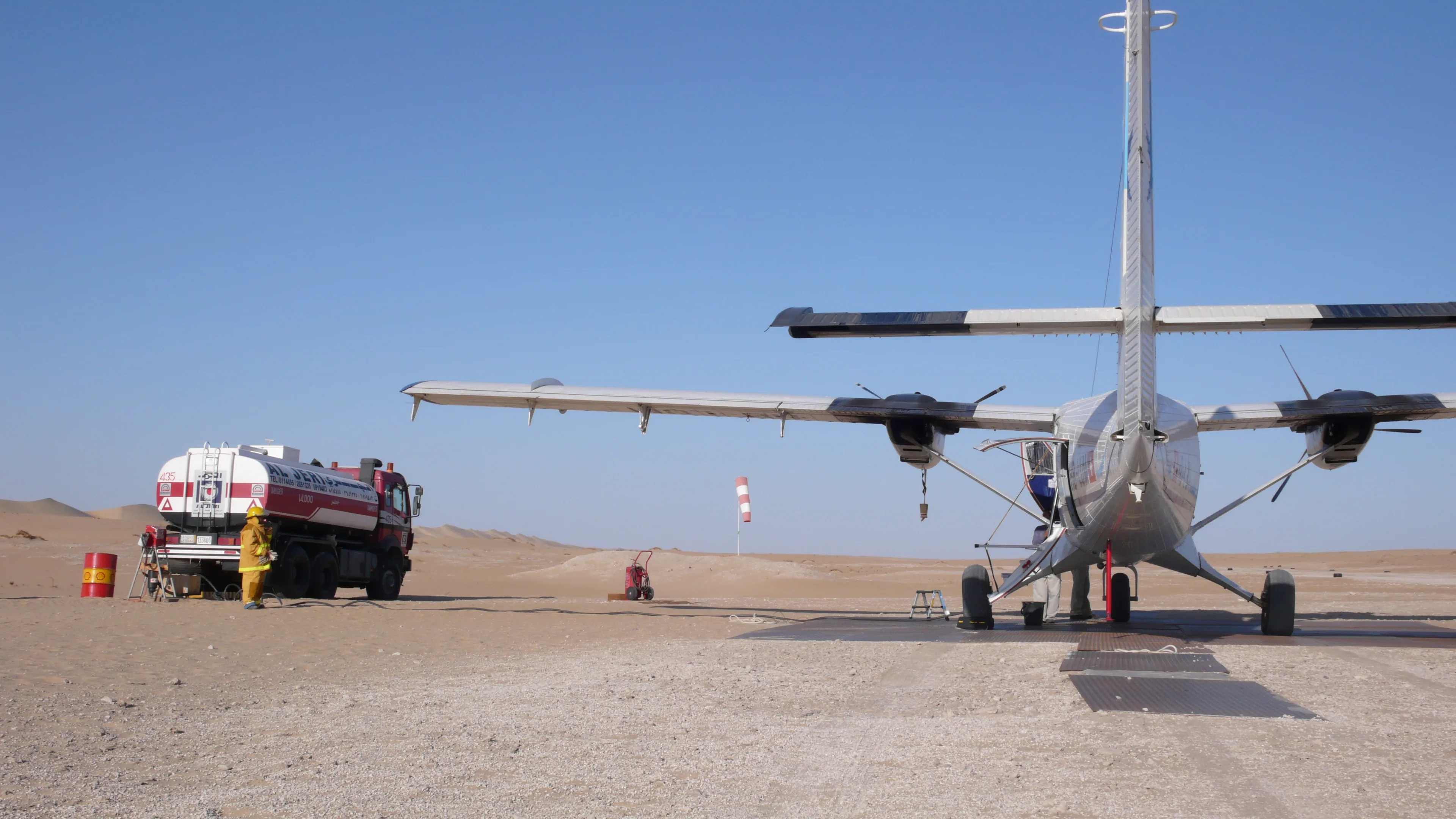

Short, rough strips
Take-off over a 15 m obstacle in 366 m, landing in 320 m. That's about three and a half football pitches, gravel optional.
Wheels, floats or skis
One airframe, six ways to land: wheels, straight floats, amphibious floats, wheel-skis, skis and large low-pressure tyres for soft ground.
Hot and high
Its Pratt & Whitney PT6As are limited to 620 shp, so they have power in reserve. On the -34, full take-off power is available up to 42 °C at sea level.
Built to be kept flying
Simple systems, fixed gear, no pressurisation. We maintain ours at Altenrhein, where we're a de Havilland Canada factory-endorsed service centre.
Twin Otter
On board

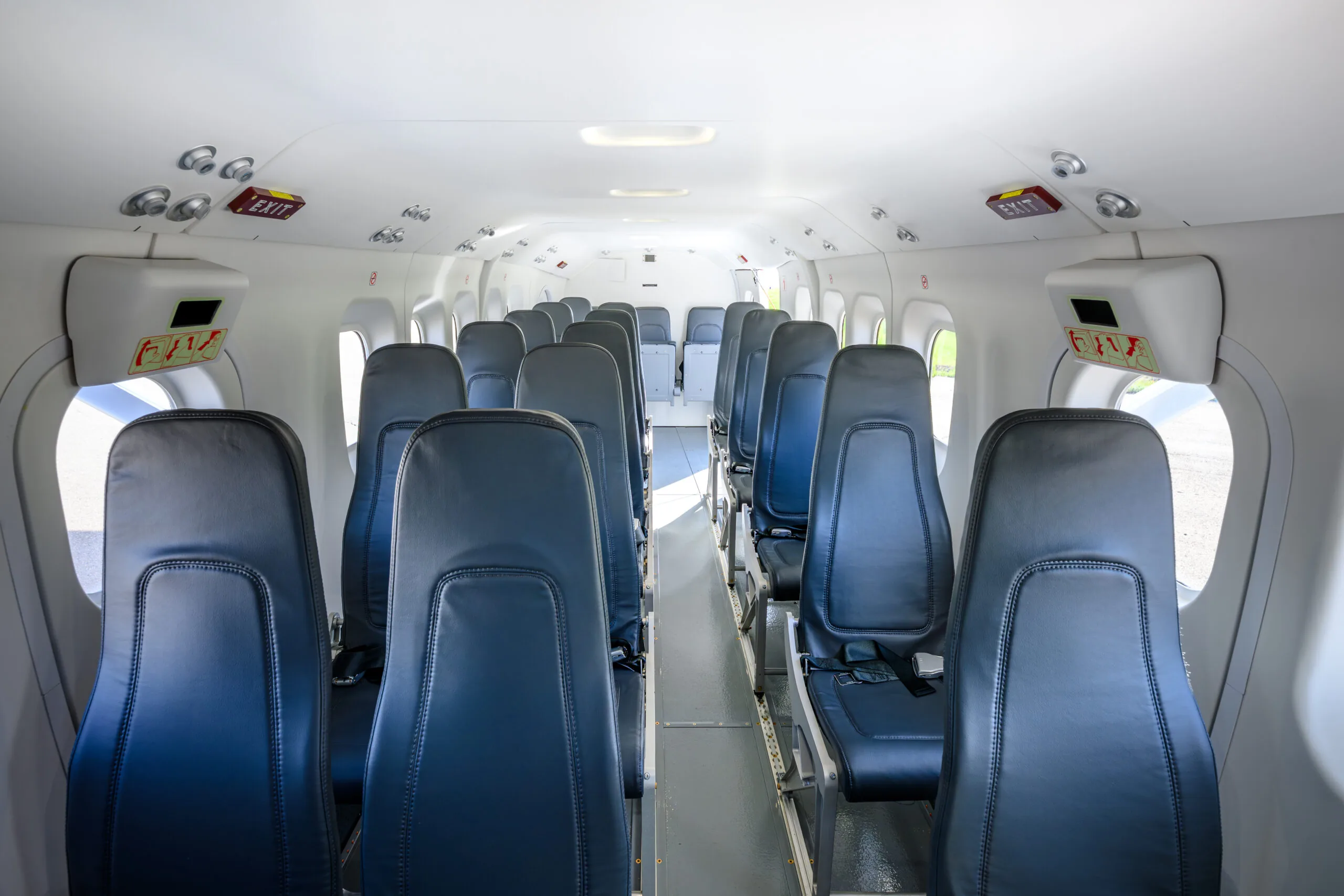

The cabin
5.61 m long, 1.75 m wide and 1.50 m high: 10.9 m³ for 19 seats, or cargo, or a mix. Seats come out quickly, so passenger in the morning can be freight in the afternoon. We also fit it for medical evacuation, parachute drops and surveillance workstations.
The doors

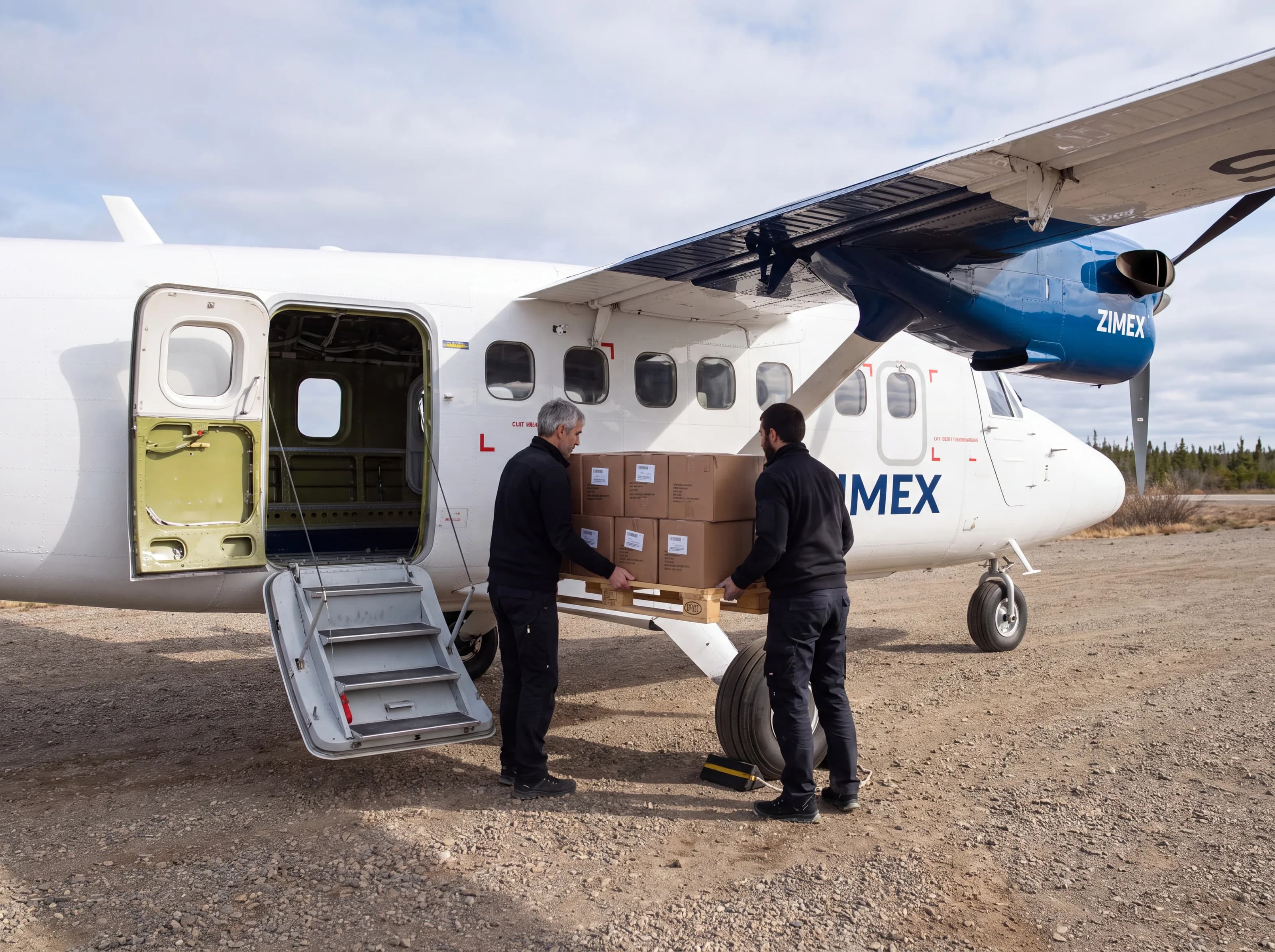

The left-hand door is 1.27 m wide and 1.42 m high. Its front half is an airstair, its rear half a double cargo door. A Euro pallet goes in without a fight. There's also a door on the right, and baggage space in the nose (1 m³) and the tail (2.5 m³).
Three flight decks

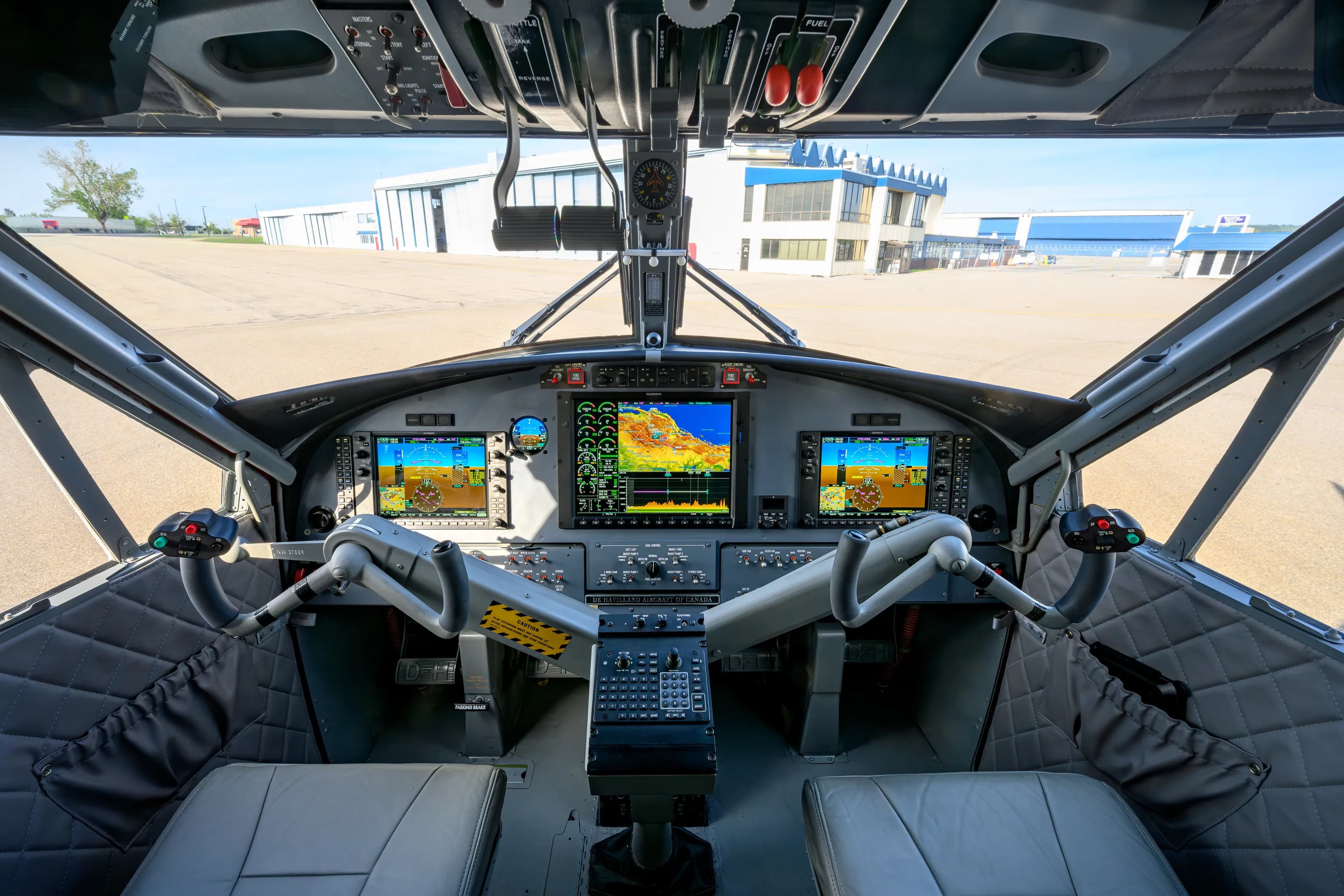

Analogue instruments on the -300, Honeywell Primus Apex on the -400, Garmin G1000 NXi with autopilot and envelope protection on the 300-G. Our pilots are trained on all three.

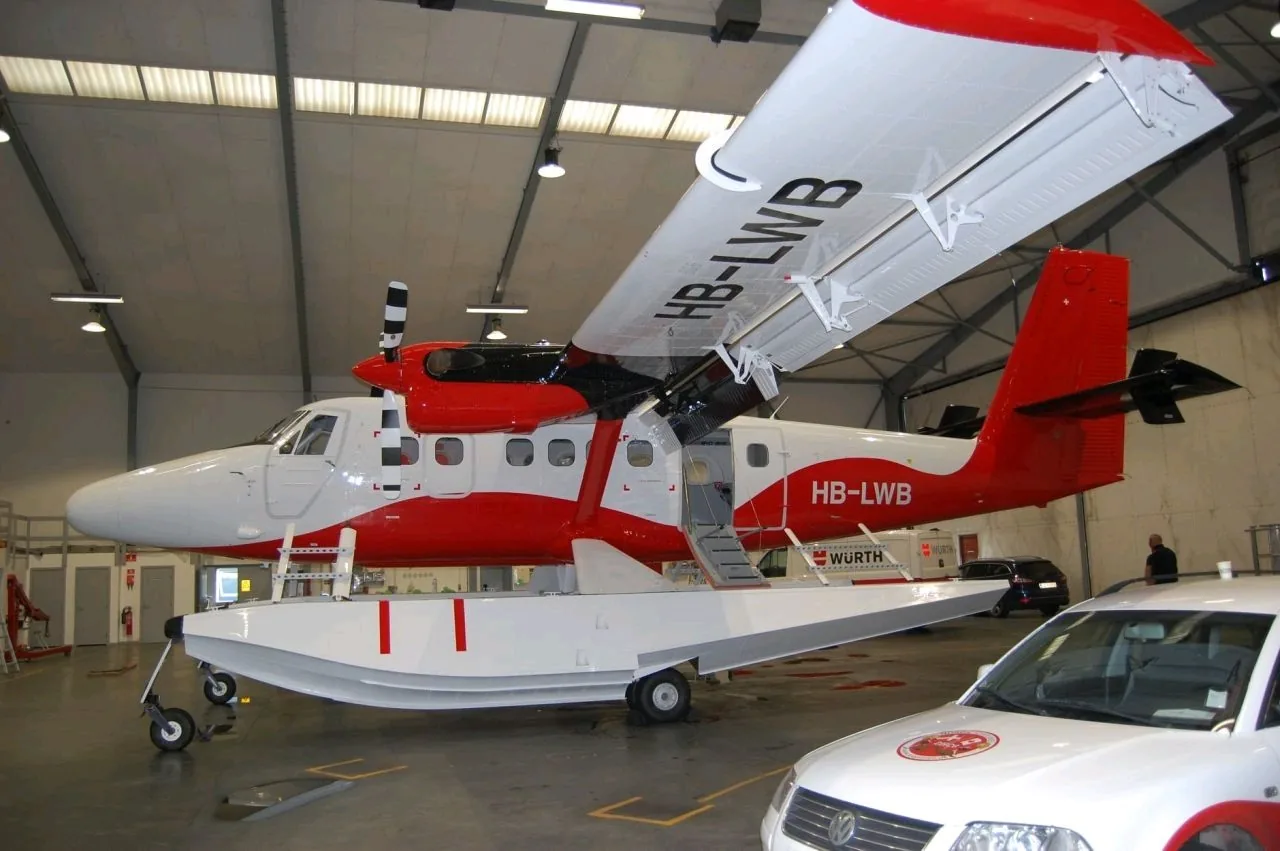

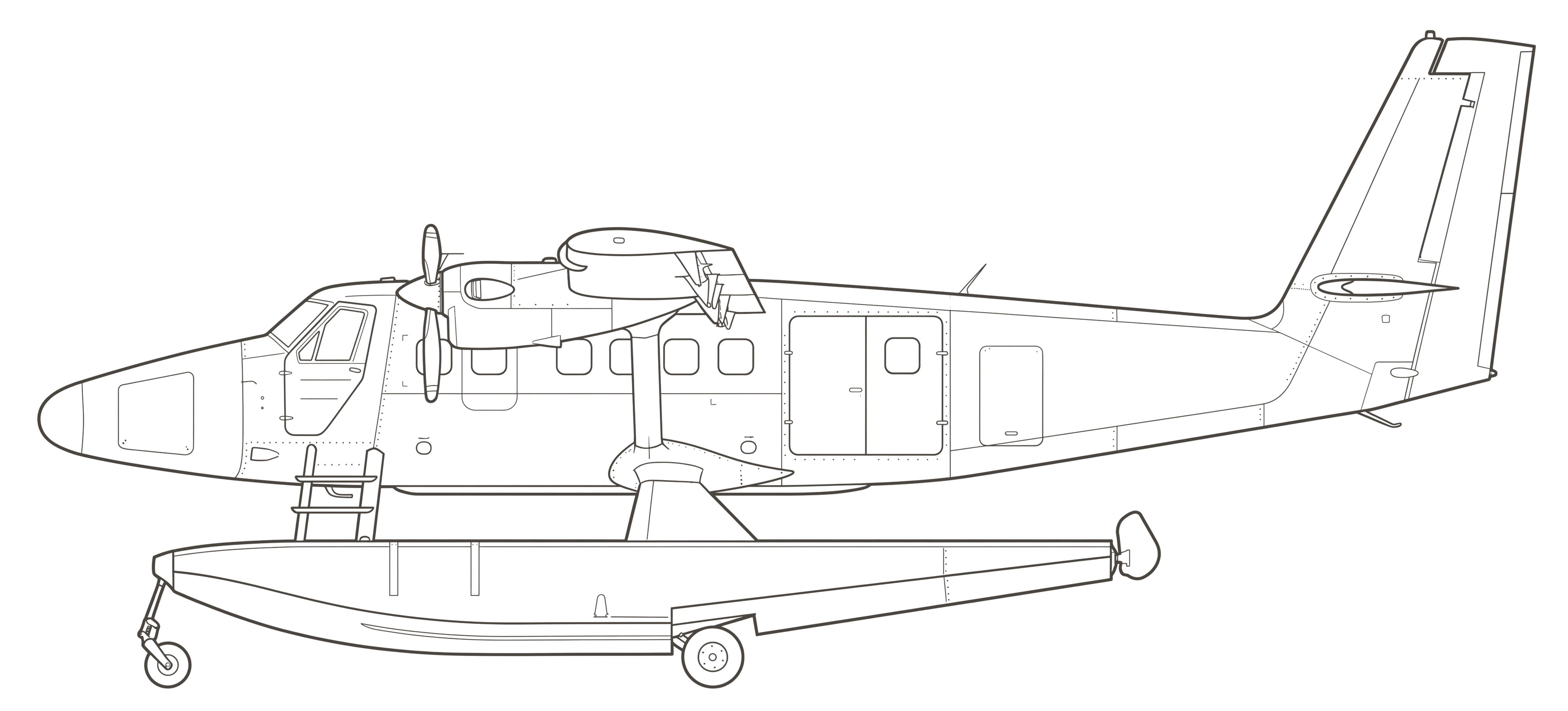

Floats

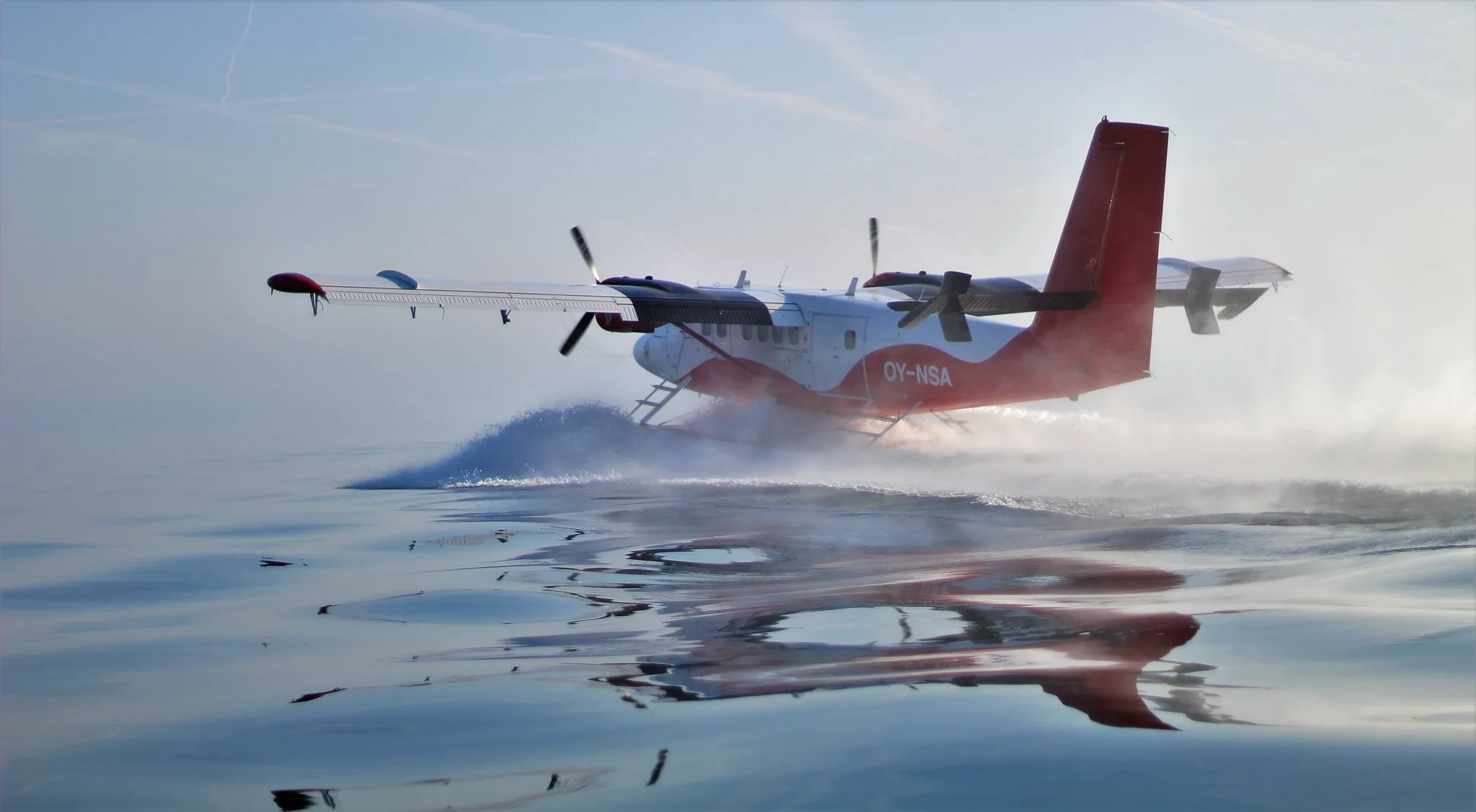

Amphibious Wipline floats add about 700 kg and 1 m of height. They also turn every lake, river and harbour into a runway. From water the Twin Otter clears 15 m in 599 m. Since 2017 we've been an EASA-approved float operator.
- Take-off over 15 m
- 366m
- Passengers
- 19
- Payload over 100 nm (300-G)
- 2,004kg
- Range, standard tanks (300-G) · 1,613 km
- 871nm
Range
From Altenrhein: 871 nautical miles.
That's the 300-G's range on standard tanks with a 45-minute reserve. With a tonne on board it's still 803 nm (1,487 km). Long-range tanks stretch it to 1,064 nm. For longer trips, Twin Otters island-hop. Ours has flown from Lake Constance to Tahiti in 12 legs.
DHC-6-300 · DHC-6-400 · Classic 300-G
Three generations
| DHC-6-300 | DHC-6-400 | Classic 300-G | |
|---|---|---|---|
| In our fleet | 7 | 1 | 1 (second on order) |
| Built | 1969–1985 | 2010 | 2026 |
| Engines | PT6A-27 | PT6A-34 | PT6A-27 (-34 optional) |
| Flight deck | Analogue | Honeywell Primus Apex | Garmin G1000 NXi |
| Max cruise | ~182 kt | 182 kt | 182 kt |
| Payload, 100 nm | ~2,000 kg | 1,972 kg | 2,004 kg |
| Range, standard tanks | ~1,400 km | 1,413 km (763 nm) | 1,613 km (871 nm) |
| Empty weight | ~3,360 kg | 3,377 kg | 3,175 kg |
~ means approximate. The -300 has no current manufacturer specification.

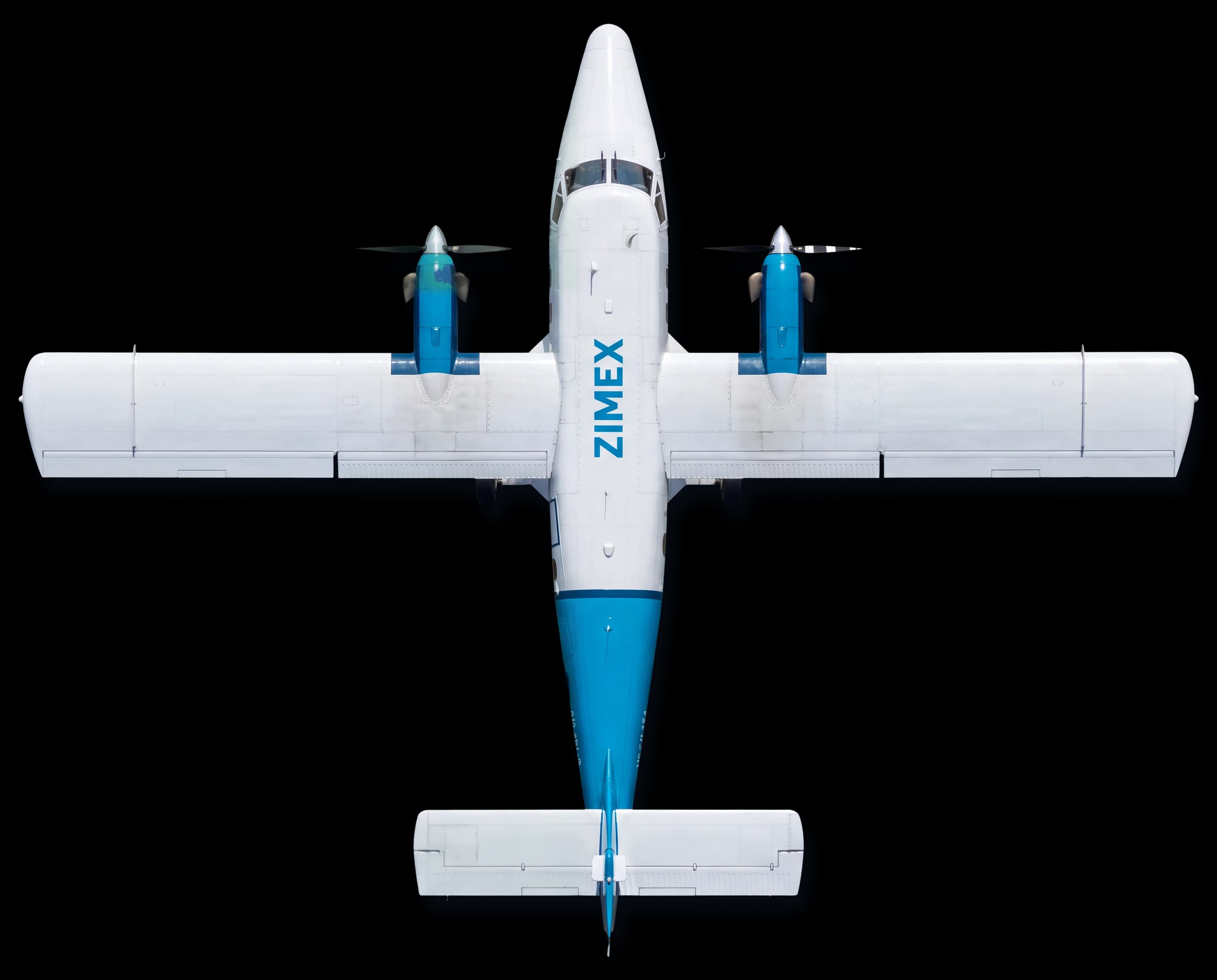

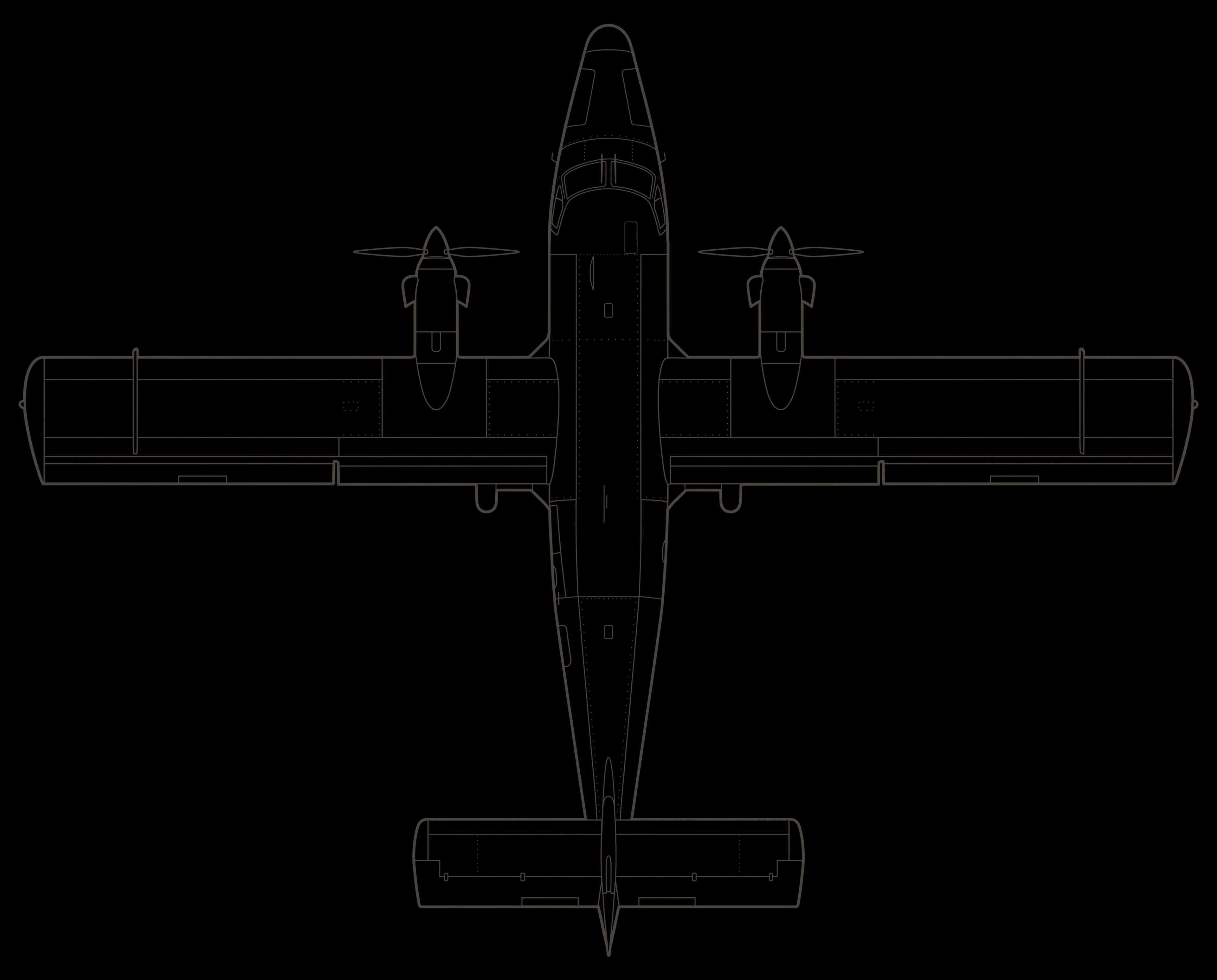

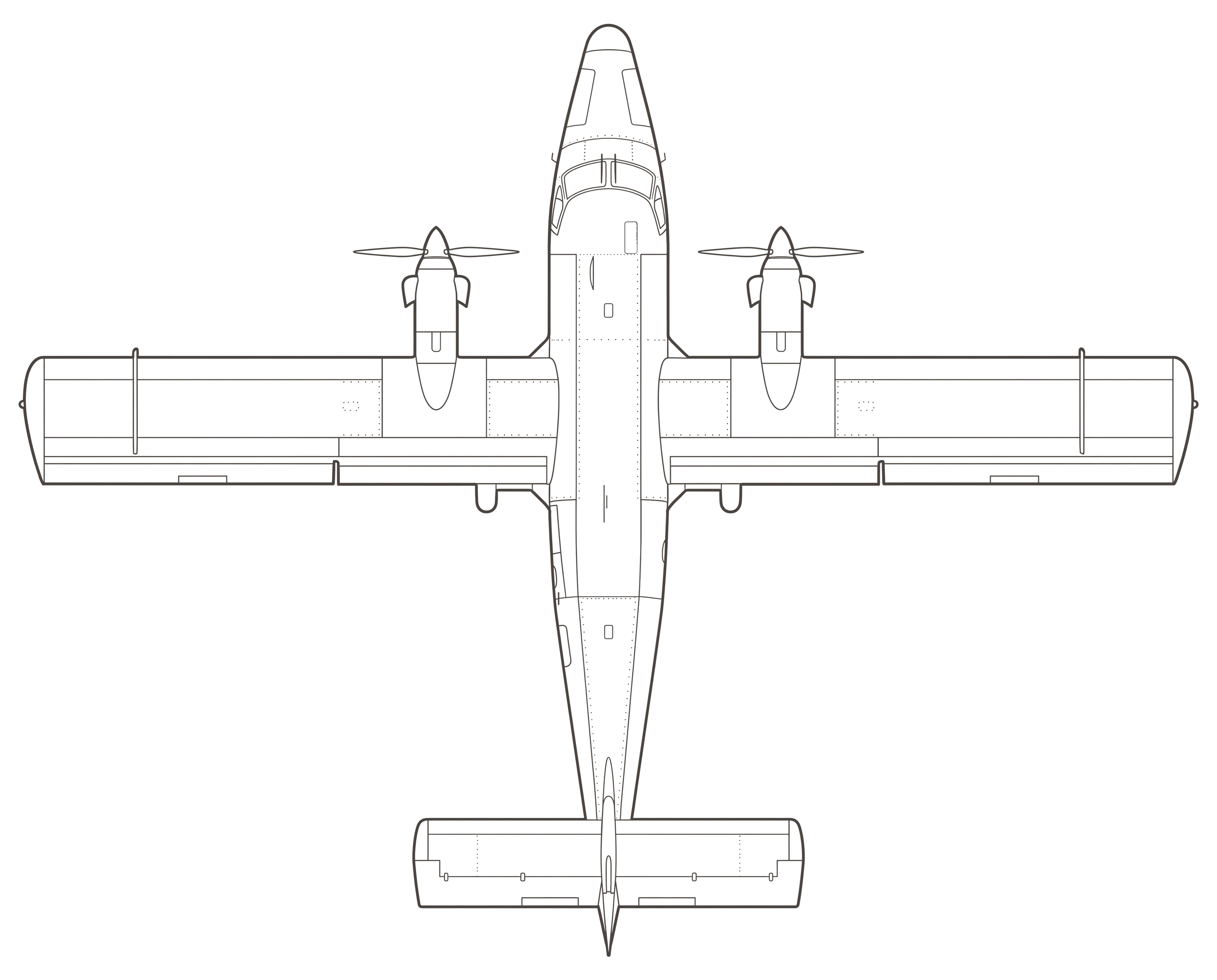

Top view
Twin Otter
- Wingspan
- 19.81 m
- Length
- 15.77 m
- Height
- 5.94 m on wheels
de Havilland Canada DHC-6
Specifications
- Type
- de Havilland Canada DHC-6 Twin Otter (-300, -400, Classic 300-G)
- Crew
- 2 pilots (1 minimum)
- Passengers
- 19
- Landing gear
- Wheels · straight floats · amphibious floats · wheel-skis · skis · intermediate flotation gear
Dimensions, weights and performance are the manufacturer's published figures (de Havilland Canada, EASA type certificate). Performance is for the Classic 300-G on wheels unless noted. Real payload and range depend on configuration, temperature, altitude and runway.
Registrations
Our aircraft
| Reg | Type | Built |
|---|---|---|
| HB-LUE | DHC-6-300 | 1969. The same year as Zimex. |
| HB-LUC | DHC-6-300 | 1973 |
| HB-LRR | DHC-6-300 | 1976 |
| HB-LAL | DHC-6-300 | 1976 |
| HB-LRO | DHC-6-300 | 1976 |
| HB-LQV | DHC-6-300 | 1979 |
| HB-LUB | DHC-6-300 | 1985 |
| HB-LUX | DHC-6-400 | 2010. The first Series 400 ever built. |
| HB-LAO | Classic 300-G | 2026. The first production 300-G. |
